Description
Product Overview

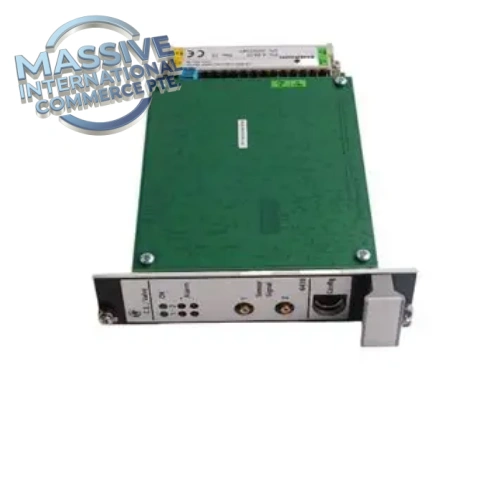

The Emerson A6410 (formerly EPRO) is a 3U single-slot plug-in TSI module designed for the AMS 6500 / CSI 6500 Machinery Health Monitor rack system. It is a dual-channel valve and case expansion monitor used to measure valve position and casing thermal expansion on steam and gas turbines, compressors and large rotating equipment in power plants, refineries and petrochemical facilities. It interfaces with LVDT/inductive displacement transducers, provides built-in sensor excitation, and generates alarm/trip outputs for machinery protection, fully compliant with API 670.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | A6410 |
| Manufacturer | Emerson Automation Solutions (EPRO) |
| Series | AMS 6500 Machinery Health Monitor |
| Product Type | Valve & Case Expansion Monitor / TSI Module |
| Channels | 2 independent differential input channels |
| Supported Sensors | LVDT, inductive displacement transducers (PR9350 series) |
| Sensor Excitation | 4 Vrms @ 4.75 kHz buffered carrier supply |
| Input Bandwidth | 0 ~ 100 Hz (-3dB) |
| Input Impedance | ~200 kΩ |
| Galvanic Isolation | ≥1500 VAC channel-to-system isolation |
| Power Supply | 24 VDC backplane supply |
| Form Factor | 3U Eurocard DIN 41494, single rack slot |
| Dimensions | 30(W) ×128.4(H) ×160(D) mm |
| Weight | ~320g |
| Operating Temp | 0°C ~ +60°C |
| Storage Temp | -40°C ~ +85°C |
| Humidity | 5–95% non-condensing |
| Analog Output | Buffered proportional 0/4–20mA or 0–10V front/rear outputs |
| Safety Standard | API 670 compliant |
| Hot Swap | Yes |
Key Features
- Dual independent measurement channels for simultaneous valve position and turbine casing expansion monitoring.
- Integrated 4.75kHz carrier excitation for LVDT displacement sensors, eliminating external signal conditioning hardware.
- Galvanic isolation between transducer circuits and rack backplane, suppressing ground loop noise.
- Built-in continuous diagnostics to detect sensor open circuit, short circuit, cable faults and module hardware failure.
- Configurable alarm and trip thresholds with adjustable time delay and hysteresis for machinery protection logic.
- Front panel buffered analog outputs for local meter indication; rear analog outputs for DCS/SCADA interface.
- Hot-swappable 3U Eurocard design for maintenance without full rack shutdown, compliant with API 670 machinery protection requirements.
- Password protected configuration to prevent unauthorized parameter modification.
Installation Notes
- Install into Emerson AMS6500 19-inch rack, one module per slot, confirm rack firmware compatibility.
- Match with EPRO LVDT/inductive displacement sensors (PR9350 series) for valve and casing expansion measurement.
- Separate low-level transducer signal wiring from high-voltage power cables to reduce EMI interference.
- Use proper ESD protection when handling the Eurocard module.
- Follow plant lockout/tagout procedures even during hot-swap maintenance.
- After module replacement, perform sensor calibration, loop check and protection trip proof test before returning machinery online.
- Configure alarm/trip setpoints via AMS 6500 configuration software.
Testing Procedure
- Visual inspection: Check front panel LEDs, PCB, edge connector for scratches, bent pins or corrosion.
- Insert A6410 module into AMS6500 rack, apply 24VDC rack power and verify power-up self-test passes.
- Connect precision LVDT simulator to both input channels.
- Inject known displacement values and verify readings on AMS 6500 software and analog output terminals.
- Validate sensor fault detection by simulating open and short transducer wiring.
- Test alarm and trip functions, confirm threshold hysteresis and time delay settings work as configured.
- Record calibration data, save configuration backup and tag module for spare inventory.
FAQ
Q: What system is Emerson A6410 used for? A: It belongs to Emerson AMS 6500 (EPRO) machinery health monitoring system, used for turbine valve position and casing thermal expansion measurement.
Q: What sensors does A6410 support? A: LVDT and inductive displacement transducers such as EPRO PR9350 series.
Q: Is A6410 hot swappable? A: Yes, it is designed as hot-swappable module for AMS6500 racks under controlled maintenance procedures.
Q: What signal outputs are available? A: Buffered 4–20mA or 0–10V analog signals, available at both front and rear connectors for remote monitoring.
