Description
Product Overview

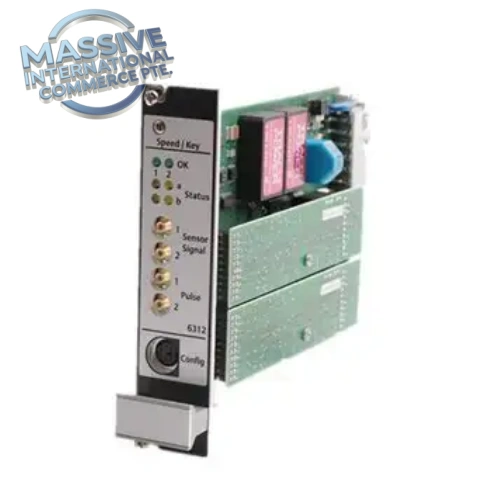

The Emerson A6312 (EPRO) is a 3U single-slot plug-in TSI protection module for AMS 6500 / CSI 6500 Machinery Health Monitor rack system. This dual-channel speed and key-phase monitor delivers rotational speed measurement, overspeed/underspeed protection, zero-speed detection and key phase reference signal capture for large rotating equipment. It accepts inputs from eddy current proximity probes or Hall-effect sensors and is widely deployed on steam turbines, gas turbines, compressors and hydro units in power generation, oil & gas and petrochemical plants. The module fully complies with API 670 for machinery protection.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | A6312 |
| Manufacturer | Emerson Automation Solutions (EPRO) |
| Series | AMS 6500 / CSI 6500 |
| Product Type | Dual Channel Speed & Key Phase Monitor |
| Channels | 2 independent galvanically isolated input channels |
| Supported Sensors | EPRO PR642x eddy current probes, PR9376 Hall-effect pulse sensors |
| Frequency Bandwidth | DC ~ 20 kHz, max speed 65,535 RPM |
| Tooth Count Setting | 1–255 target teeth programmable |
| Input Voltage | ±27.3 VDC |
| Input Impedance | >100 kΩ |
| Sensor Excitation | -26.75 VDC, short-circuit protected |
| Speed Accuracy | ±0.2% of reading |
| Analog Output | 4–20mA proportional speed signal per channel |
| Relay Output | Isolated SPDT dry contacts for overspeed, underspeed, zero-speed and sensor fault |
| Power Supply | 24 VDC ±10%, max 6W |
| Form Factor | 3U Eurocard single slot, DIN41494 |
| Dimensions | 30(W) ×128.4(H) ×160(D) mm |
| Weight | ~320g |
| Operating Temp | 0°C ~ +60°C |
| Storage Temp | -40°C ~ +85°C |
| Humidity | 5–95% non-condensing |
| Certifications | CE, UL, API 670 compliant |
| Hot Swap | Yes |
Key Features
- Dual independent channels for rotational speed, overspeed, underspeed and zero-speed monitoring, plus key-phase pulse capture for vibration phase analysis.
- Compatible with eddy current probes and Hall-effect pickups; programmable gear tooth count for RPM conversion.
- Built-in continuous sensor diagnostics to detect probe open circuit, short circuit and cable faults.
- Configurable overspeed/underspeed trip thresholds with adjustable time delay and hysteresis to prevent nuisance trips.
- 4–20mA analog outputs for transmitting real-time speed values to DCS/SCADA systems; front panel buffered key-phase pulse for oscilloscope diagnostics.
- Isolated SPDT relay contacts for hardwired machinery protection interlock.
- Hot-swappable 3U Eurocard design, allowing online replacement under controlled maintenance procedures without rack shutdown.
- Configuration, calibration and diagnostics performed by AMS 6500 configuration software with password protection.
Installation Notes
- Install only in Emerson AMS6500 19-inch rack, verify firmware compatibility with existing rack controller.
- Pair with EPRO PR642x proximity probes or PR9376 Hall sensors and matched extension cables.
- Separate low-level sensor pulse wiring from high-current AC power cables to minimize EMI noise.
- Use ESD wrist strap during handling to avoid static damage to PCB electronics.
- Follow plant lockout/tagout procedures even for hot-swap maintenance.
- After module replacement, perform sensor gap calibration, speed loop test and overspeed proof test before returning rotating equipment online.
- Set overspeed trip parameters strictly following the rotating machine OEM protection specifications.
Testing Procedure
- Visual inspection: Check front panel LEDs, PCB and edge connector for scratches, bent pins or corrosion.
- Insert A6312 module into AMS6500 rack, apply 24VDC rack power and confirm power-up self-test passes.
- Connect signal simulator to both input channels to generate simulated gear tooth pulse signals.
- Simulate different rotational speed values, verify RPM readings in AMS6500 software and analog output terminals.
- Simulate probe open/short faults to validate module diagnostic alarms trigger correctly.
- Test overspeed, underspeed and zero-speed alarm and trip relay functions, verify threshold hysteresis and time delay.
- Save configuration backup, record calibration data and tag module for spare inventory.
FAQ
Q: What is Emerson A6312 used for? A: It is dual-channel speed and key phase TSI monitor, used for turbine/compressor overspeed protection, zero-speed detection and phase reference for vibration analysis.
Q: What sensors are compatible with A6312? A: EPRO PR642x eddy current proximity probes and PR9376 Hall-effect pulse sensors.
Q: Is A6312 hot swappable? A: Yes, hot swap is supported on AMS6500 racks under approved site maintenance procedures.
Q: What software configures A6312? A: AMS 6500 configuration software for parameter setup, diagnostics and overspeed proof testing.
