Description
At-A-Glance Executive Brief

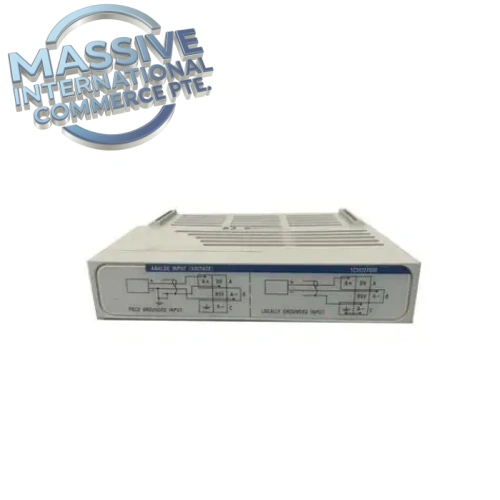

- Model: 1C31227G02
- Brand: Emerson Ovation (Westinghouse)
- Part Type: Analog Input Personality Module (PMOD)
- Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
- System compatibility: Ovation standard I/O rack, matched with corresponding AI Electronics Module (EMOD)
- Input specification: ±1V low-level voltage analog input
- Core function: Personality base module, defines field signal wiring, terminal layout, signal conditioning for ±1V voltage input, mates with AI E-module to complete analog signal acquisition
Technical Introduction
The 1C31227G02 is a personality module (PMOD) for Ovation analog input I/O system, dedicated for ±1V low-level voltage field signals. In Ovation split I/O architecture, the personality module defines the field signal type, wiring terminals and basic signal conditioning; it pairs with a compatible AI electronics module (EMOD) to convert field analog signals into digital data for Ovation DPU. It is widely used for low voltage transducers, strain gauges and other low-level voltage measurement applications in power plant boiler and turbine monitoring.
Engineer’s Takeaway 1C31227G02 is PMOD for ±1V voltage input, while 1C31227G01 is PMOD for 4-20mA current input. They are not interchangeable. PMOD and EMOD must be matched correctly; mismatched pairing will cause wrong signal scaling and measurement failure.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1C31227G02 |
| Module Type | Analog Input Personality Module (PMOD) |
| Input Signal | ±1V low-level voltage |
| Architecture | Ovation split I/O: PMOD + AI E-Module |
| Mounting | Ovation I/O base, mates with AI electronics module |
| Function | Terminal connection, signal type definition, wiring configuration |
| Application | Low-level voltage transducer, strain gauge measurement |
| Diagnostics | Channel wiring fault detection (depends on paired EMOD) |
Please refer to the OEM datasheet for complete environmental tolerances.
Field Engineer’s Tech Notes
- Verify PMOD part number before replacement; 1C31227G02 (±1V) cannot replace 1C31227G01 (4-20mA).
- Low-level ±1V signals are highly susceptible to electrical noise. Use shielded twisted pair cable and separate from high-power AC cables.
- After installing PMOD and EMOD, recheck Ovation point configuration and signal scaling parameters.
- Inspect terminal block for loose wiring or corrosion; poor connections cause large measurement drift for low voltage signals.
- Perform loop calibration after replacement to validate measurement accuracy.
Adaptive QA & Testing Protocol
Each unit undergoes bench testing with compatible AI E-module. Apply ±1V reference voltage signal to verify signal routing and terminal integrity. Wiring continuity and insulation test are performed. Visual inspection checks terminal block, traces and connectors for damage. Test reports and short validation videos are available upon request.
Buyer’s FAQ
Q: What is the difference between 1C31227G02 and 1C31227G01? A: 1C31227G02: PMOD for ±1V voltage input. 1C31227G01: PMOD for 4-20mA current input. They have different internal circuitry and wiring definitions and cannot be swapped.
Q: What warranty applies to new surplus or refurbished Emerson 1C31227G02? A: All units carry a 12-month hardware warranty. Warranty excludes damage caused by overvoltage, wrong wiring, mismatched EMOD and field surge.
Q: Can I use this PMOD for 4-20mA transmitters? A: No, this PMOD is designed for ±1V low voltage only. Use 1C31227G01 for 4-20mA current signals.
Q: What lead time applies to this obsolete Ovation personality module? A: Stocked units ship within 1–3 working days. If out of stock, sourcing lead time can extend to 4–8 weeks subject to inventory availability.
