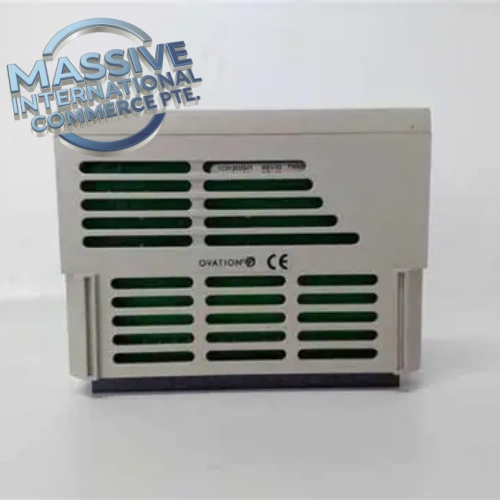

Emerson 1C31201G01 | Legacy Ovation 6 Channel Servo Drive PMOD For Electro-Hydraulic Actuator

Description

At-A-Glance Executive Brief

• Model: 1C31201G01
• Brand: Emerson Ovation (Westinghouse)
• Part Type: Servo Driver Personality Module (PMOD)
• Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
• System compatibility: Ovation split I/O architecture, mates with servo electronics EMOD, installs in MAU / standard I/O rack
• Channel: 6 independent servo channels, LVDT excitation & position feedback interface
• Core function: Personality base for turbine electro-hydraulic servo control; provides LVDT excitation signal, terminal wiring, signal conditioning for servo valve drive and LVDT position feedback, used for steam turbine governor and valve position control

Technical Introduction

The 1C31201G01 is a dedicated servo driver personality module (PMOD) for Ovation DCS turbine control systems. It is part of Ovation split I/O design (EMOD + PMOD). This PMOD provides the field terminal interface, LVDT excitation source and signal conditioning circuitry for electro-hydraulic servo actuators. It outputs 1kHz, 19Vpp excitation for LVDT position sensors and receives position feedback signals. It works with servo electronics EMOD to convert DPU control commands into servo drive signals for turbine steam valves, while reading valve position from LVDT feedback. Widely used in steam turbine governing control, boiler turbine critical valve positioning in thermal and combined cycle power plants.

Engineer’s Takeaway This is a special-purpose servo PMOD, not standard AI/AO/DI/DO personality module. Must pair with matching servo EMOD; standard I/O EMOD cannot be used. LVDT low-level feedback signals are highly susceptible to electromagnetic interference. Shielded twisted pair and strict separation from high power cables are mandatory. It is a critical spare for turbine EH control system.

Core Technical Specifications

Please refer to the OEM datasheet for complete environmental tolerances.

Field Engineer’s Tech Notes

• Before replacement, implement turbine control loop lock-out / tag-out, transfer valve control to manual mode to prevent turbine trip.
• LVDT cables must use shielded twisted pair, separate from high-current AC cables. Poor cable routing causes position noise and valve hunting.
• Verify PMOD and servo EMOD part number match. Mismatched EMOD/PMOD combination will lead to LVDT excitation failure and loss of valve position feedback.
• After installation, perform LVDT calibration and full valve stroke test. Check for position drift, servo oscillation and valve hunting.
• Inspect terminal block for loose connections and corrosion; poor terminals cause intermittent LVDT position jump.

Adaptive QA & Testing Protocol

Each unit undergoes bench testing with compatible servo EMOD. LVDT excitation waveform and amplitude are verified. Servo signal routing and terminal continuity are tested. Isolation resistance test is performed. Visual inspection checks terminal block, circuit traces and connector integrity. Test reports and short validation videos are available upon request.

Buyer’s FAQ

Q: What EMOD pairs with 1C31201G01? A: It needs matching servo electronics EMOD. Standard AI/AO EMOD cannot work with this servo PMOD.

Q: What warranty applies to new surplus or refurbished Emerson 1C31201G01? A: All units carry a 12-month hardware warranty. Warranty excludes damage caused by field overvoltage, wrong EMOD pairing, poor LVDT wiring and surge damage.

Q: What is the main application of 1C31201G01? A: Steam turbine EH servo valve control, provides LVDT excitation and position feedback interface for turbine governing valves.

Q: What lead time applies to this obsolete Ovation servo personality module? A: Stocked units ship within 1–3 working days. If out of stock, sourcing lead time can extend to 4–8 weeks subject to inventory availability.
