Description
Bently Nevada 190065A-01-01-03-00-01 | General Purpose Equipment Monitor, Modbus Communication, IP66 Enclosure In Stock
Many products are not listed online, please contact us for more available items.
We have 16 shared warehouses worldwide, so kindly note that it may take several hours for us to give you an accurate reply. We will address your inquiries as soon as we can.
Click here to get more.
Technical Specifications
Part Number: 1900/65A-01-01-03-00-01
Manufacturer: Bently Nevada
Product Series: 1900/65A General Purpose Equipment Monitor
Product Type: General-Purpose Machinery Condition Monitor
Power Supply: 110–220 VAC external supply option, as listed for this configuration
Display: Attached display, as listed for this configuration
Mounting / Enclosure: Fiberglass NEMA 4X/IP66 housing with viewing window, as listed for this configuration
Transducer Inputs: 4 configurable channels
Temperature Inputs: 4 configurable channels
Supported Transducer Types: Compatible acceleration, velocity, radial vibration, thrust, position, and speed sensors, depending on channel configuration
Temperature Sensor Types: Supported E, J, K, and T thermocouples; verify compatibility with the applicable configuration
Alarm Functions: Independent Alert and Danger setpoints
Relay Outputs: 6 configurable relays
Analog Outputs: 4 configurable 4–20 mA recorder outputs
Buffered Outputs: Transducer buffer outputs, subject to configuration
Communication Interface: Ethernet and software-configurable RS232/RS485 serial interface are supported by the platform
Communication Protocol: Modbus, subject to the installed configuration and enabled options
Analog-to-Digital Conversion: 24-bit ADC
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +90°C
Operating Humidity: Up to 95% RH, non-condensing
Monitor Module Dimensions: Approximately 196.9 × 149.4 × 74.4 mm
Monitor with Attached Display Dimensions: Approximately 196.9 × 149.4 × 97.8 mm
Optional Fiberglass Enclosure Dimensions: Approximately 300.2 × 249.4 × 209.8 mm
Product Net Weight: Not independently verified for this complete configuration
Shipping Weight: Supplier confirmation required
Shipping Dimensions: Supplier confirmation required
Warranty: 1 year, subject to seller terms
Key Functions
Vibration and Position Monitoring: Supports compatible transducers for monitoring vibration, shaft position, thrust, and speed according to the configured channel types.
Temperature Monitoring: Provides four temperature input channels for compatible sensors, supporting additional machinery condition measurements.
Alarm and Relay Control: Programmable alarm setpoints and configurable relays allow the monitor to signal abnormal operating conditions to external systems.
Analog Measurement Outputs: Configurable 4–20 mA outputs allow selected measurement variables to be transmitted to compatible monitoring and control equipment.
Modbus Communication: Supported Modbus options enable data exchange with compatible PLC, DCS, and SCADA systems when the required interface and configuration are available.

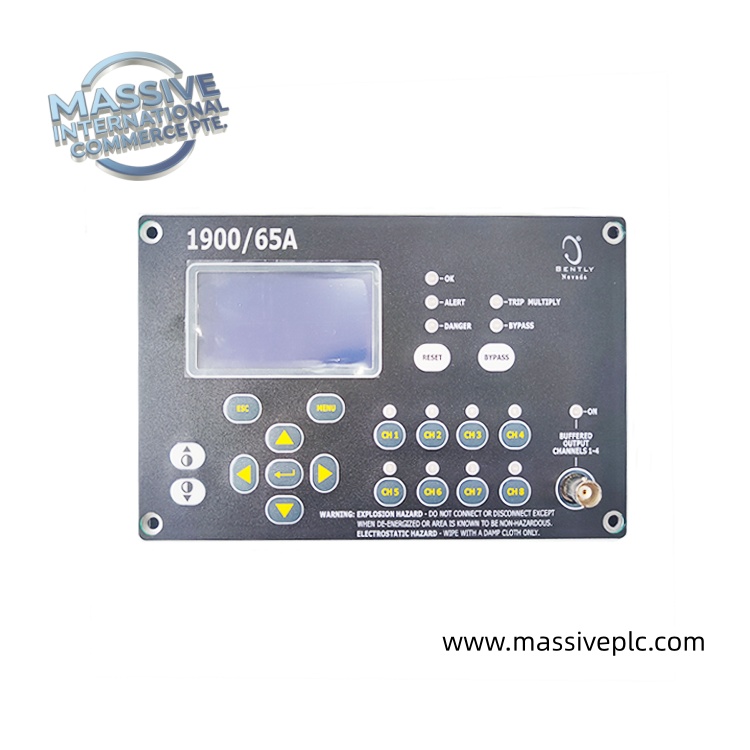

Local Display: The attached display provides local access to channel information and monitor status.
Application Scenarios
Industrial Pump Monitoring: Monitor compatible vibration and temperature signals to support condition-based maintenance.
Motor and Fan Protection: Track machinery operating conditions and use configured alarms to alert operators to abnormal behavior.
Compressor Monitoring: Monitor compatible vibration, speed, and position variables as part of a machinery protection strategy.
Power Generation and Process Plants: Integrate machinery monitoring information with compatible supervisory or control systems.
HS Code
Suggested HS Classification: Requires confirmation based on the equipment’s principal function and the importing country’s tariff schedule.
Possible Heading for Review: HS 9031 or another applicable heading, depending on the final customs classification.
Final HS Code: To be confirmed with the destination-country customs authority or customs broker.
User Manual
Document Title: Bently Nevada 1900/65A General Purpose Equipment Monitor — Product Datasheet
Datasheet PDF: https://www.colletplc.com/uploadfile/downloads/1900-65A-01-01-03-01-00-Datasheet.pdf
Operation Manual: Bently Nevada 1900/65A General Purpose Equipment Monitor Operation Manual, Publication 172250 Rev. F
Operation Manual Reference: https://www.manualslib.com/manual/4594000/Bently-Nevada-1900-65a.html
Installation and Commissioning Notes
- Verify the complete part number and physical nameplate before installation.
- Confirm the external power supply arrangement and wiring requirements.
- Identify connected transducers and configure the correct channel types and measurement ranges.
- Record existing alarm setpoints, relay logic, and output assignments before replacing a unit.
- Configure the communication interface and verify Modbus settings and register mapping where applicable.
- Test configured channels, alarms, relays, and outputs before returning the equipment to service.
Important Note
The technical specifications above combine platform-level documentation with configuration details reported by a distributor. Verify the exact order code, physical dimensions, net weight, packaging measurements, communication options, and applicable customs code before purchasing or shipping. “In Stock” and the stated delivery time are requested listing terms and must be confirmed against actual supplier inventory and dispatch arrangements.
