Description
Product Overview

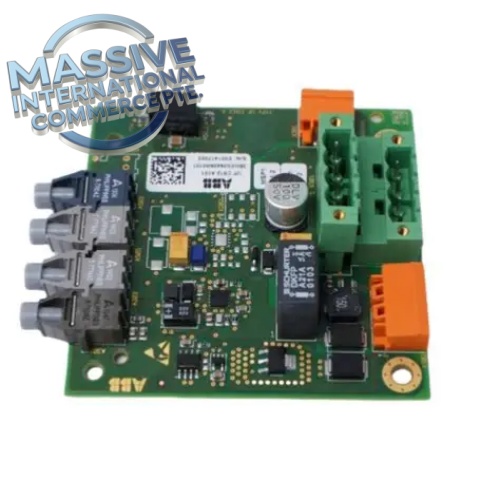

The ABB UFC912A101 (order code 3BHE039426R0101) is an EOI protection and signal processing board for ABB UNITROL series generator excitation control systems. It acquires analog and digital field signals, executes excitation limit supervision, fault detection and protective interlock logic for synchronous generators. The board interfaces between the UNITROL main controller, power stack and field transducers, performing fast fault detection and trip commands to safeguard the generator and excitation bridge.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | UFC912A101, 3BHE039426R0101 |
| Manufacturer | ABB |
| Product Family | UNITROL Excitation Control |
| Board Type | EOI Excitation Protection Board |
| Power Supply | 24 VDC control supply |
| Signal Interfaces | Analog measurement inputs, binary interlock inputs, relay / optical trip outputs |
| Diagnostics | Onboard watchdog, signal range checking, fault latching, front status LEDs |
| Operating Temp | 0 °C ~ +55 °C |
| Humidity | 5%–95% non-condensing |
| Mounting | Plug-in card for UNITROL control rack |
| Enclosure | PCB assembly for cabinet backplane mounting, IP20 |
Key Features
- Real-time monitoring of excitation current, excitation voltage and generator operating quantities
- Embedded protection functions: overexcitation, underexcitation, field overcurrent and field loss detection
- Fast protective trip and interlock logic for generator excitation fault conditions
- Galvanic isolation between field measurement circuits and control logic to suppress EMI
- Continuous self-diagnostics with latched fault flags for post-trip event analysis
- Plug-in hot-swap capable within UNITROL rack with proper lockout procedures
- Optical and hardwired output paths to trigger excitation bridge shutdown and generator trip
- Seamless integration with UNITROL 5000 / UNITROL 6000 excitation controllers
Application
Used in power plant synchronous generator excitation cabinets for thermal power, hydroelectric and combined cycle generating units. It acts as the dedicated protection board inside UNITROL racks, providing independent excitation supervision separate from the main regulation controller.
Installation & Maintenance Notes
- Strict ESD handling required before removing or inserting the PCB card
- Isolate high voltage field circuits and lockout power before rack card replacement
- Verify 24 VDC control supply and backplane connections after installation
- Clear latched fault flags and perform signal injection test after replacement
- Keep low-level measurement wiring separated from high-current power cables
- Save excitation parameter setpoints before board swap or firmware update
FAQ
Q: What does EOI stand for? A: EOI = Excitation Overcurrent / Excitation Protection Interface for UNITROL excitation systems.
Q: Can this board work standalone without UNITROL main controller? A: No, it is a dedicated rack plug-in card and must pair with UNITROL excitation master controller.
Q: What protection functions does UFC912A101 handle? A: It monitors field overcurrent, loss of excitation and related generator excitation protective interlocks.
