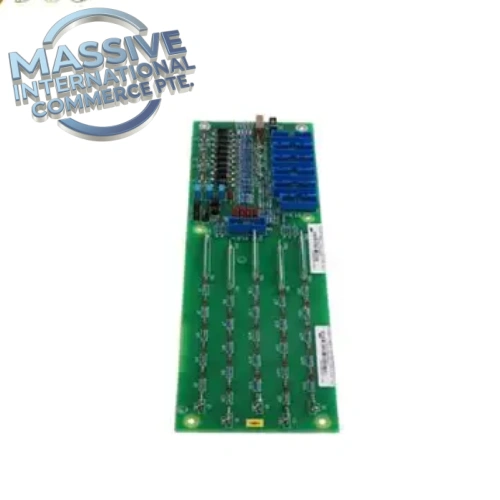

ABB SDCS-PIN-51 3ADT220090R0006 | PTC Heatsink Temp & Pulse Transformer Interface Board

Description

At-A-Glance Executive Brief

• Model: SDCS-PIN-51 (SDCS-PIN-51-COAT, Part No. 3ADT220090R0006)
• Brand: ABB
• Part Type: DC drive measurement / pulse interface card for DCS800
• Lifecycle status: OEM legacy obsolete board; stocked for brownfield ABB DCS800 DC converter retrofits
• System compatibility: ABB DCS800 high-power DC drive (D5–D7 frame), pairs with SDCS-CON-4 control board, pulse transformer boards
• Weight: ~0.48 kg

Technical Introduction

Failure of the SDCS-PIN-51 interrupts armature voltage/current measurement and thyristor firing pulse routing, causing drive overcurrent trips, loss of speed regulation or complete DC drive shutdown. The ABB SDCS-PIN-51 (3ADT220090R0006) is the primary measurement and pulse interface PCB for large DCS800 thyristor DC converters. It samples armature DC voltage, mains AC voltage and armature current, scales these high-power signals down to low-level analog values for the SDCS-CON-4 main controller. It also provides the interface to pulse transformer boards for thyristor firing pulse distribution, and monitors power semiconductor heatsink temperature via PTC thermistor inputs. Onboard jumpers and burden resistors are factory coded to match the drive rated current and voltage. The conformal coated (-COAT) variant offers protection against moisture, dust and corrosive industrial atmospheres. Measured values, temperature and fault status are forwarded to the drive controller and plant DCS/SCADA. Used in metal rolling, paper, mining and large test stands. Operators maintain spare SDCS-PIN-51 boards to reduce downtime for legacy DCS800 maintenance.

• Best Suited For
  • ABB DCS800 high-power DC drive cubicles (frame D5/D6/D7)
  • Armature voltage / current sensing, heatsink thermal monitoring and thyristor pulse transformer interface
  • Direct drop-in replacement for existing ABB SDCS-PIN-51 3ADT220090R0006 measurement hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• The board’s voltage/current coding jumpers and burden resistors must match the original drive rating. Mismatched coding causes incorrect measurements and overcurrent protection misoperation.
• This board connects to high-voltage power circuits. Execute lockout/tagout, confirm full isolation and zero energy before card removal.
• ESD precautions required when handling PCB; static can damage precision measurement resistors and signal circuits.
• PTC thermistor wiring must be verified after replacement; open or short PTC triggers overtemperature faults.
• After replacement, calibrate armature voltage and current readings, test firing pulse distribution and validate protection functions before returning the DC drive online.

Adaptive QA & Testing Protocol

Each SDCS-PIN-51 3ADT220090R0006 board is bench tested on DCS800 test fixture. We verify high-voltage divider and current burden resistor scaling with reference signal injection. PTC temperature input circuit is simulated and checked. Pulse transformer interface connectivity is validated. Onboard fuses, snubber networks and conformal coating integrity are visually inspected. Continuity and insulation tests are performed. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is ABB SDCS-PIN-51 3ADT220090R0006 used for? A: It is the measurement and pulse interface board for ABB DCS800 large DC drives. It measures armature voltage/current, monitors heatsink temperature and routes thyristor firing pulses from the main control board to pulse transformers.

Q: What warranty applies for refurbished and NSFP SDCS-PIN-51? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, incorrect jumper coding, high voltage transients and wiring errors.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB DCS800 SDCS-PIN-51 boards.

Q: Is SDCS-PIN-51 hot-swappable? A: Not hot-swappable. The DCS800 DC drive must be fully de-energized and isolated before removing this measurement card.
