Description
Product Overview

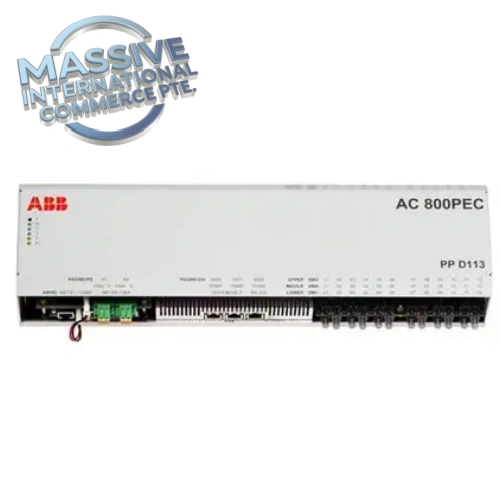

The ABB PPD113B01-26-111000, order code 3BHE023784R2630, is a high-performance process controller core module for ABB AC800PEC platform, widely deployed within ABB UNITROL generator excitation control systems. It executes high-speed closed-loop excitation regulation, generator voltage control, reactive power regulation and system interlock protection. This controller handles fast dynamic sampling and real-time computation for synchronous generators in thermal power, hydropower plants and gas turbine power stations. It is a critical aftermarket spare for maintenance and retrofit of existing UNITROL excitation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | PPD113B01-26-111000 |
| Alternate Code | 3BHE023784R2630 |
| Brand | ABB |
| Type | AC800PEC High Speed Controller Module |
| Compatible System | ABB UNITROL Excitation System, AC800PEC |
| Communication Ports | Multiple Ethernet ports, Serial interface |
| Control Task Cycle | Microsecond-level high speed control loop |
| Onboard I/O | Integrated digital and analog signal interface for excitation feedback |
| Programming Environment | ABB Control Builder M, PEC control library |
| Redundancy | Supports redundant controller configuration for high availability excitation systems |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -25°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Mounting | Rack mount inside excitation control cabinet |
| Dimensions | 450 × 155 × 100 mm |
| Net Weight | ~2.76 kg |
| Certifications | CE, IEC 61131-3 |
| Product Status | OEM legacy spare, discontinued new original production |
Key Features
- High-speed real-time control core for generator excitation regulation and power system stabilizer (PSS) algorithm
- Multi-Ethernet communication interfaces for excitation network, HMI and plant DCS connection
- Supports redundant hot standby configuration to avoid generator trip upon single controller failure
- Integrated signal acquisition for generator voltage, current and rotor excitation feedback signals
- Built-in fault diagnostics, event logging and disturbance recording for power system fault analysis
- Rugged industrial hardware design, anti-vibration and EMC protection for power plant cabinet environment
- Programmed via Control Builder M, compatible with UNITROL excitation parameter sets
Installation & Testing Notes
- Install PPD113B01 module in dedicated rack slot inside UNITROL excitation cabinet
- Connect Ethernet control network and analog/digital feedback wiring strictly per excitation schematic
- Verify power supply and grounding before energizing the controller
- After power-up, run hardware self-test and check front panel LED status indicators
- Download excitation control application via Control Builder M, verify parameter configuration
- Redundant configuration supports hot swap; confirm standby controller fully synchronized before replacement
- Perform static excitation loop test and no-load generator commissioning test after replacement
- Review fault logs and PSS response during commissioning
FAQ
Q: What platform is PPD113B01-26-111000 for? A: ABB AC800PEC controller platform, used for UNITROL generator excitation systems.
Q: What is the alternate part number? A: 3BHE023784R2630.
Q: Does it support redundant configuration? A: Yes, supports hot standby redundancy for generator excitation control.
Q: What software is used for programming? A: ABB Control Builder M with AC800PEC library.
Q: What is the main application? A: Real-time excitation control and voltage regulation for synchronous generators in power plants.
