Description
Product Overview

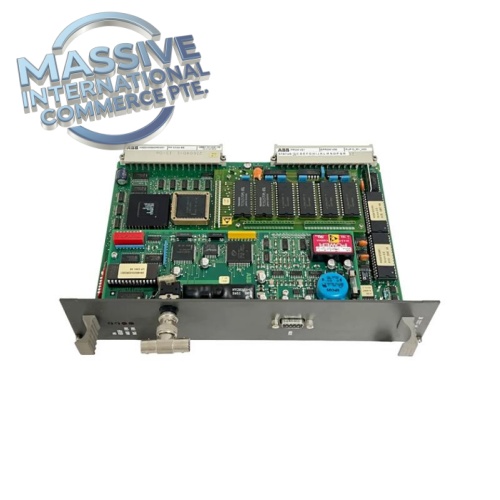

ABB PPC322BE01 (HIEE300900R0001) is a high-performance processing unit dedicated for ABB UNITROL P generator excitation control system. Built on PowerPC architecture, it serves as the core computing controller to execute excitation closed-loop regulation, voltage control, reactive power management, PSS power system stabilizer algorithms and system interlock protection logic. It handles high-speed sampling of generator voltage/current signals and communicates with I/O boards and HMI. Widely deployed in thermal, hydro and gas turbine power plants, it is a critical spare for maintenance and retrofit of UNITROL P excitation cabinets, usually configured in redundant dual-controller setup.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | PPC322BE01, HIEE300900R0001 |
| Brand | ABB |
| Type | UNITROL P Processor / Processing Unit |
| Compatible Platform | ABB UNITROL P Generator Excitation System |
| CPU Core | PowerPC 604e, 300MHz |
| Memory | 128MB RAM |
| Communication | Fieldbus, internal high-speed backplane bus for I/O interface boards |
| Redundancy | Supports dual redundant hot standby configuration |
| Backplane Supply | Powered by UNITROL P rack backplane |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Mounting | Plug-in rack card inside UNITROL P excitation cabinet |
| Net Weight | ~1.15 kg |
| Certifications | CE, IEC power system standards |
| Product Status | OEM discontinued, aftermarket legacy spare |
Key Features
- High-speed PowerPC processor for fast closed-loop excitation regulation and PSS algorithm calculation
- Supports redundant dual processor configuration to prevent generator trip upon single controller failure
- Integrated fieldbus interface for exchanging data with signal acquisition and pulse output boards
- Built-in comprehensive diagnostics for processor health, memory faults and communication link failures
- Onboard event logging and disturbance recording for power system fault post-analysis
- Front panel LED indicators to display power status, run mode and fault alarms
- Works cooperatively with RH926KE and other UNITROL P interface boards for full excitation control
Installation & Testing Notes
- Insert PPC322BE01 into dedicated processor slot within UNITROL P rack
- Connect backplane fieldbus interface cables and verify rack power supply wiring
- Confirm cabinet grounding before energizing the controller
- After power-up, check front panel LED status and run module self-test
- Download excitation application parameters and synchronize redundant processor data if redundant pair
- Hot swap available only in fully synchronized redundant setup; lock generator trip interlocks before replacement
- Perform static excitation test and no-load generator commissioning after replacement
- Review fault logs and verify PSS response during commissioning
FAQ
Q: What system uses PPC322BE01 HIEE300900R0001? A: ABB UNITROL P generator excitation control system.
Q: What is the main function of this module? A: It is the main processor to run generator voltage regulation, reactive power control and PSS logic for UNITROL P excitation cabinet.
Q: Does PPC322BE01 support redundancy? A: Yes, it supports dual hot standby redundant processor configuration.
Q: Is PPC322BE01 hot swappable? A: Hot swap only applicable for redundant pair. Trip interlock must be locked before replacement. Non-redundant single unit requires full rack power down.
Q: What boards match PPC322BE01? A: It pairs with RH926KE pulse amplifier and other UNITROL P I/O & signal conditioning boards.
