Description
Product Overview

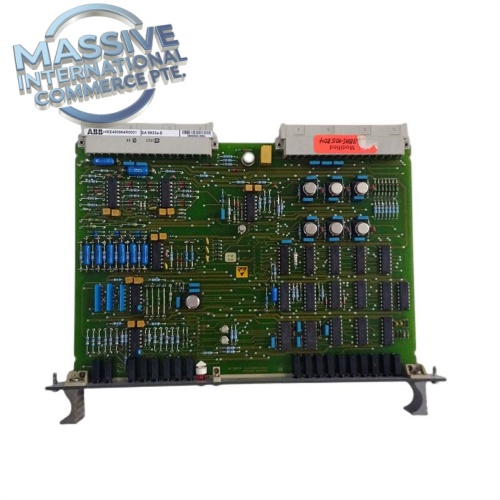

The ABB GDC780BE, alternate part number 3BHE004468R0021, is a high-speed gate drive control board designed for ABB medium voltage variable frequency converters. It generates isolated firing pulses for IGCT/IGBT power semiconductors, collects power device feedback signals, and implements real-time overcurrent, overvoltage and temperature protection for high-power converter stacks. Widely deployed in wind power converters, mining medium voltage drives, metallurgical rolling mill drives, oil & gas high-power motor control and large industrial power conversion systems.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | GDC780BE (3BHE004468R0021) |
| Manufacturer | ABB |
| Series | Medium Voltage Converter / IGCT Drive System |
| Product Type | Gate Drive Control Board |
| Power Supply | 24VDC control power |
| Power Device Interface | IGCT / IGBT gate trigger and fault feedback |
| Signal Isolation | High voltage galvanic isolation between logic side and power stage |
| Diagnostics | Device fault, overcurrent, overvoltage, over-temperature monitoring |
| Form Factor | Eurocard plug-in rack board for converter cabinet |
| Operating Temp | -10°C ~ +55°C |
| Storage Temp | -40°C ~ +85°C |
| Humidity | 5–95% non-condensing |
| Enclosure Rating | IP20 (inside converter cabinet only) |
| Configuration Software | ABB DriveWindow |
| Hot Swap | No |
Key Features
- Dedicated gate drive controller for high-power IGCT/IGBT stacks, outputs high-speed isolated trigger pulses to turn power semiconductors on/off.
- Real-time sampling of power device operating status, multi-layer hardware protection for overcurrent, overvoltage and overtemperature to prevent catastrophic power device failure.
- High isolation design between low-voltage logic circuit and high-voltage power section, suppresses strong EMI noise inside medium voltage converter cabinets.
- Front panel LED indicators for power, trigger status and fault alarms, enabling quick local troubleshooting of converter faults.
- Standard Eurocard construction, installs into ABB medium voltage converter rack, easy removal and replacement during maintenance shutdown.
- Integrated fault latching and diagnostic reporting, sending fault codes to main drive controller for event logging and alarm handling.
- Matched for ABB high-power medium voltage converter platforms, stable operation under heavy load and harsh industrial environment.
- Critical spare replacement board for legacy ABB medium voltage drive assets in energy and heavy industry plants.
Installation Notes
- Insert GDC780BE board to the designated slot inside medium voltage converter cabinet and lock front latch to ensure solid backplane contact.
- Separate low voltage control wiring and gate signal cables from high power busbars to reduce EMI interference.
- Verify 24VDC control power polarity before energizing the board.
- Execute full lockout/tagout and discharge all high voltage capacitors before removing or installing this board.
- Backup drive parameters in DriveWindow before board replacement.
- After installation, perform power device test, pulse check and full converter no-load commissioning before returning drive online.
- Ensure proper ESD protection during handling; wear anti-static wrist strap to avoid PCB damage.
Testing Procedure
- Visual inspection: Inspect PCB, front LEDs, edge connector and gate drive terminals for burn marks, swelling capacitors or damaged traces.
- Insert module into converter rack, connect 24VDC control supply and gate drive wiring.
- Apply low voltage control power, verify module completes power-on self-test and status LEDs show normal standby condition.
- Use DriveWindow to communicate with drive controller, check board identification and fault history.
- Run trigger pulse test, validate gate signal output and device feedback signal capture.
- Simulate overcurrent and temperature fault signals to verify protection response and fault latching function.
- Save drive parameter backup, log commissioning test data and tag spare board for inventory.
FAQ
Q: What is ABB GDC780BE used for? A: It is IGCT/IGBT gate drive control board for ABB medium voltage converters, sending trigger pulses and implementing power device protection.
Q: What is the alternate part number of GDC780BE? A: 3BHE004468R0021.
Q: Is GDC780BE hot swappable? A: No. Medium voltage power cabinet must be fully de-energized and capacitors discharged before replacement.
Q: What devices does this gate drive board control? A: IGCT or IGBT high power semiconductor stacks inside medium voltage variable frequency converters.
