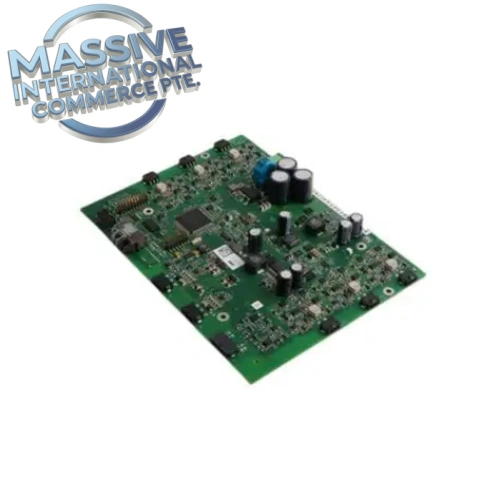

ABB GCC960C101 3BHE033067R0101 | Redundant Serial Communication Excitation Control Board

Description

At-A-Glance Executive Brief

• Model: GCC960C101 (Drawing No. 3BHE033067R0101, also written GC C960 C101)
• Brand: ABB
• Part Type: UNITROL excitation / medium voltage drive inverter main control board
• Lifecycle status: OEM obsolete; stocked for brownfield UNITROL generator excitation cabinet retrofits
• System compatibility: ABB UNITROL excitation system, GC C960 rack, dual isolated RS485/422 links, communicates to plant DCS
• Weight: 0.43 kg

Technical Introduction

Failure of the GCC960C101 terminates PWM firing logic, IGBT gate drive bus and excitation protection judgment, which results in loss of generator field regulation, excitation trip or inability to execute generator synchronizing and de-excitation sequences. The GCC960C101 (3BHE033067R0101) is the main control PCB inside ABB GC C960 architecture UNITROL static excitation cubicles. It executes real-time excitation control algorithms, generates high-speed PWM firing commands for IGBT power stacks, handles power device gate drive bus management, and implements excitation overcurrent, overvoltage and temperature protection logic. It features dual galvanically isolated RS485/422 serial ports supporting Modbus RTU, SPA and proprietary RPWT protocols to exchange measured values, alarms and status signals with the plant DCS and upper-level controller. The board receives generator PT/CT analog measurements, calculates field current/voltage regulation, and issues interlock trip commands to the power stage. Thermal, watchdog and supply supervision diagnostics continuously report faults. Thermal & hydro power plant operators keep spare GCC960C101 boards to reduce forced outage risk during legacy UNITROL migration.

• Best Suited For
  • ABB UNITROL generator static excitation GC C960 control cabinets
  • Generator field voltage / reactive power regulation, IGBT firing control and excitation protection logic
  • Direct drop-in replacement for existing ABB GCC960C101 3BHE033067R0101 excitation master control hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Firmware version and application parameter set must match the cabinet configuration. A replacement GCC960C101 requires downloading excitation parameters and verifying serial communication mapping before commissioning.
• This board interfaces with high-power excitation circuits. Execute lockout/tagout, discharge DC-link capacitors and confirm zero energy before board removal.
• ESD protection is mandatory during PCB handling; static discharge can damage DSP core and isolated serial transceivers.
• After replacement, perform PT/CT measurement calibration, PWM firing test, protection function simulation and full generator excitation ramp test before returning online.
• Maintain proper shielding on RS485/422 field cables with single-point grounding to avoid ground-loop interference on excitation measurement signals.

Adaptive QA & Testing Protocol

Each GCC960C101 3BHE033067R0101 board is bench tested on ABB GC C960 UNITROL test fixture. We load the excitation application and verify board boot, watchdog and self-diagnostics. Simulated PT/CT signals are fed to validate regulation calculation and PWM pulse generation. Dual isolated serial channels are tested with Modbus RTU / SPA master simulator for stable data exchange. Protection trip logic is validated under simulated overcurrent and overvoltage conditions. PCB visual inspection, solder joint and connector integrity are performed. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is ABB GCC960C101 3BHE033067R0101 used for? A: It is the main inverter control board for ABB UNITROL GC C960 excitation systems. It runs generator field regulation algorithms, generates IGBT firing pulses, implements excitation protection, and communicates measurement & alarm data to the plant DCS via dual isolated serial links.

Q: What warranty applies for refurbished and NSFP GCC960C101? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, firmware mismatch, high-voltage excitation transients and incorrectly downloaded application parameters.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB GC C960 control boards.

Q: Is GCC960C101 hot-swappable? A: Not hot-swappable in live excitation cabinets. The UNITROL excitation system must be fully de-energized, isolated and DC bus capacitors discharged before replacement.
