ABB GC C960 3BHE033067R0101 | High-Speed Generator Control Circuit Board

Description

At-A-Glance Executive Brief

• Model: 3BHE033067R0101 (GC C960)
• Brand: ABB

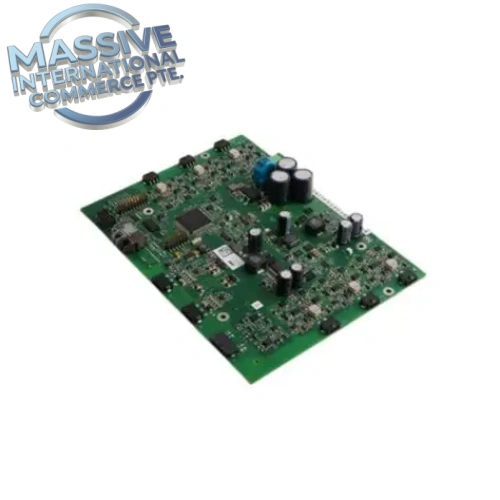

• Part Type: GC C960 generator / turbine control PCB board
• Lifecycle status: OEM obsolete; stocked for brownfield power plant generator and excitation control retrofits
• System compatibility: ABB generator control cubicles, interfaces to DCS, governor and excitation subsystems
• Weight: 0.35 kg

Technical Introduction

Failure of the 3BHE033067R0101 GC C960 board disrupts generator control logic, digital command outputs and status feedback, which can cause loss of generator regulation, protection trip or inability to execute governor sequence commands. The ABB GC C960 (3BHE033067R0101) is a dedicated control PCB used within ABB generator and turbine control cabinets. It executes local control algorithms, generates fast digital command outputs for excitation and governor equipment, collects equipment status signals and communicates alarm/measurement data to the plant DCS. The board features onboard diagnostics, fault monitoring and galvanic isolation to protect low-voltage control circuits from field-side electrical transients. Designed for continuous operation in power station environments, it handles high-speed sequence and protection logic for hydro and thermal generators. Power generation operators maintain spare boards to minimize forced outage risk while planning legacy generator control system migration.

• Best Suited For
  • Power plant generator control, excitation and turbine governor cubicles
  • Digital command output, equipment status monitoring and protection interlock logic
  • Direct drop-in replacement for existing ABB GC C960 3BHE033067R0101 control hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• The board application parameters and logic configuration must be backed up prior to replacement. A spare replacement board requires downloading the correct configuration before commissioning.
• ESD protection is mandatory during handling; static discharge can damage the sensitive onboard processor and signal circuits.
• Verify backplane pin assignment and wiring termination. Incorrect wiring can lead to false generator interlock trips or damage to the board and field actuators.
• Perform lockout/tagout and confirm zero energy before removing the PCB, as the cabinet contains hazardous control and power circuits.

Adaptive QA & Testing Protocol

Each 3BHE033067R0101 GC C960 board is bench tested on an ABB generator control test fixture. We load the application configuration and verify board boot, self-diagnostics and fault reporting. Digital output channels are validated, and status input signals are simulated to confirm correct logic response. Communication paths to DCS and auxiliary control hardware are checked. We inspect PCB traces, solder joints and connector integrity. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is ABB 3BHE033067R0101 GC C960 used for? A: It is a generator/turbine control PCB, deployed in power plant control cubicles to run local control logic, drive digital outputs for governor/excitation equipment and exchange status/alarm data with the plant DCS.

Q: What warranty applies for refurbished and NSFP 3BHE033067R0101? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, incorrect configuration download, field wiring faults and high-voltage transients.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB GC C960 control boards.

Q: Is this board hot-swappable? A: Not recommended for hot swap in live generator control cubicles. Shutdown and isolation procedures are required unless the cabinet design explicitly supports hot replacement.
