Description
Product Overview

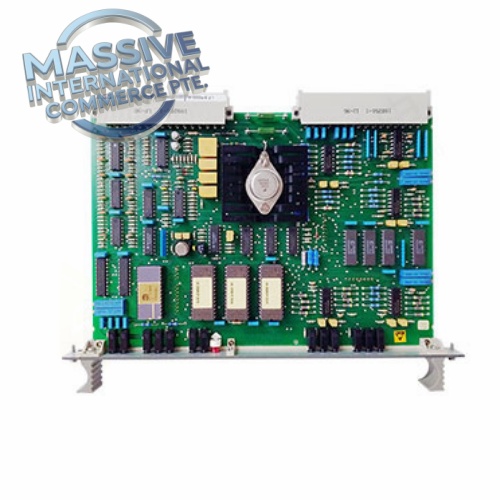

The ABB FM9925A-E, alternate part number HIEE451116R0001, is a Foundation Fieldbus H1 communication interface Eurocard module for ABB 800xA DCS and AC800M controller platform. It establishes the fieldbus link between the AC800M controller and Foundation Fieldbus H1 smart field instruments, enabling bidirectional real-time data exchange, device parameterization and diagnostic information acquisition. This module is widely deployed in power plants, chemical, petrochemical and pulp & paper facilities, used for connecting field transmitters, positioners and valve actuators into the ABB 800xA distributed control system.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | FM9925A-E (HIEE451116R0001) |
| Manufacturer | ABB |
| Series | 800xA DCS / AC800M Controller |
| Product Type | Foundation Fieldbus H1 Interface Module |
| Fieldbus Interface | Foundation Fieldbus H1 (FF H1) |
| Max Field Devices | Up to 16 FF H1 instruments per channel |
| Fieldbus Supply | Fieldbus bus-powered / external power supported |
| Isolation | 1500VAC galvanic isolation between fieldbus side and DCS backplane |
| Module Power | 24VDC, typical consumption 3~6W |
| Form Factor | Eurocard plug-in rack module |
| Operating Temp | 0°C ~ +60°C |
| Storage Temp | -40°C ~ +85°C |
| Humidity | 5–95% non-condensing |
| Enclosure Rating | IP20 (cabinet installation only) |
| Configuration Software | ABB Control Builder M, 800xA System Platform |
| Hot Swap | Yes |
Key Features
- Foundation Fieldbus H1 interface module, supports connection of FF H1 smart transmitters, valve positioners and field actuators, realizes digital fieldbus control.
- Galvanic isolation between fieldbus wiring and DCS backplane, protects controller hardware from ground loop and surge transients from field side.
- Supports up to 16 fieldbus devices, handles process value reading, control output, device calibration and asset diagnostic data collection.
- Front panel LED indicators for module power, fieldbus communication status and fault alarms, supporting rapid field troubleshooting.
- Standard Eurocard rack design, fits ABB subrack, easy removal and installation for spare replacement.
- Hot-swappable module, online replacement permitted under approved maintenance procedures without full rack shutdown.
- Seamlessly integrated with AC800M controller and 800xA operator station, supporting FF device configuration via Control Builder M engineering software.
- Popular spare part for legacy ABB 800xA systems using Foundation Fieldbus instrumentation.
Installation Notes
- Insert FM9925A-E module to the assigned slot in ABB DCS subrack, fasten front latch to guarantee reliable backplane contact.
- Use FF H1 approved shielded twisted pair cable for fieldbus wiring; separate fieldbus cables from high voltage AC power cables to reduce EMI noise.
- Confirm 24VDC supply polarity before energizing the module.
- Follow lockout/tagout procedures before disconnecting fieldbus wiring.
- Backup 800xA / Control Builder M project database before module replacement or firmware upgrade.
- After installation, scan FF field devices, download device parameters and verify control loop communication before restoring the control system online.
- Implement single-point shield grounding for fieldbus trunk cable to eliminate ground loops.
Testing Procedure
- Visual inspection: Inspect PCB board, front panel LEDs, edge connector and fieldbus terminal block for burn marks, corrosion or damaged pins.
- Insert module into DCS rack, connect 24VDC rack power and fieldbus wiring.
- Apply rack power, verify module completes power-on self-test and status LEDs indicate normal operation.
- Launch Control Builder M, scan Foundation Fieldbus network and confirm all connected FF instruments are detected.
- Read process variables from field transmitters and send control outputs to valve positioners to validate bidirectional communication.
- Simulate fieldbus cable fault and device offline status to verify diagnostic alarm reporting function.
- Save DCS project backup, log communication test results and tag spare module for inventory.
FAQ
Q: What is ABB FM9925A-E used for? A: It is Foundation Fieldbus H1 interface module for ABB 800xA / AC800M DCS, connecting FF H1 smart field instruments to the main controller.
Q: What is the alternate part number of FM9925A-E? A: HIEE451116R0001.
Q: Is FM9925A-E hot swappable? A: Yes, hot swap supported under approved maintenance procedures.
Q: How many FF H1 field instruments can FM9925A-E support? A: Maximum of 16 Foundation Fieldbus H1 devices.
