Description
Product Overview

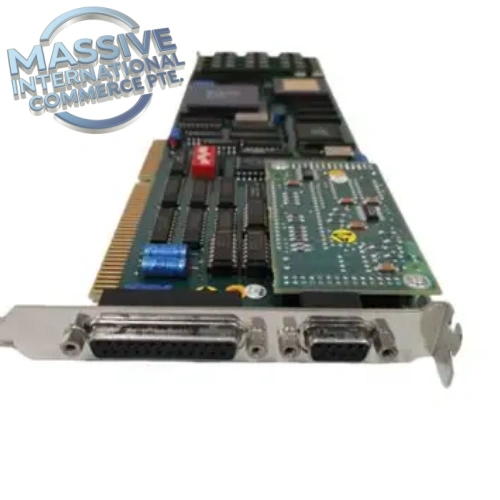

ABB DSPU131 (3BSE000355R1) is the MA200 AT-bus interface board belonging to the ABB Advant Master legacy DCS platform. It acts as the communication gateway for the Advant Master control system, handling high-speed data transmission over AT-bus between controllers, I/O racks and operator nodes. Widely deployed in power plants, pulp & paper and chemical processing facilities, this long-discontinued board serves as critical aftermarket spare parts for maintenance and retrofit of existing Advant Master installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | DSPU131, 3BSE000355R1 |
| Brand | ABB |
| Type | MA200 AT-bus Interface Board |
| Compatible Platform | ABB Advant Master DCS |
| Bus Interface | AT-bus |
| Board Form Factor | Full-length card for Advant rack |
| Physical Size | 334.6 × 121.9 × 21 mm |
| Net Weight | ~0.42 kg |
| Supply | Powered by Advant rack backplane |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -25°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Certifications | CE |
| Product Status | OEM discontinued, legacy spare only |
Key Features
- Dedicated AT-bus communication interface for ABB Advant Master distributed control system
- High-speed data exchange between Advant controllers, I/O units and operator stations
- Onboard hardware diagnostics for bus communication faults and board health monitoring
- Full-length rack card design for Advant Master chassis slots
- Front panel connectors for AT-bus cabling and status indication
- Supports redundant bus architecture for high availability process control loops
- Designed for continuous 24/7 operation in industrial control cabinet environments
Installation & Testing Notes
- Insert DSPU131 board into the dedicated slot of Advant Master rack
- Terminate AT-bus cables following system wiring schematics; check bus termination resistors
- Verify rack backplane power before energizing the board
- After power-up, check front panel status indicators and run built-in self-test
- Validate AT-bus communication with paired controllers and I/O nodes
- This board does NOT support hot swap. Rack power must be fully isolated before removal
- Perform bus load test and cross-node data verification after replacement
- Inspect connectors periodically for oxidation in high humidity plant environments
FAQ
Q: What DCS system uses DSPU131 3BSE000355R1? A: ABB Advant Master legacy DCS platform, it is MA200 AT-bus interface board.
Q: What is the main function of DSPU131? A: AT-bus communication gateway for high-speed data transfer between Advant Master controllers and system nodes.
Q: Is DSPU131 hot swappable? A: No, rack backplane power needs to be disconnected before installing or removing the board.
Q: Is this new original ABB production? A: OEM production discontinued, supplied as aftermarket spare part for existing Advant Master systems.
