Description
Product Overview

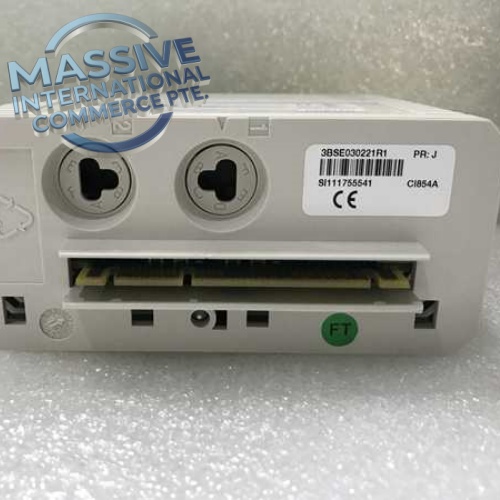

ABB CI854AK01 (3BSE030220R1) is a PROFIBUS-DP/V1 communication interface module designed for the ABB AC800M controller platform. The complete kit includes CI854 interface board and TP854 baseplate. It acts as a PROFIBUS master to connect AC800M controllers with PROFIBUS DP field devices, such as remote I/O, variable frequency drives, transmitters and valve positioners. Widely applied in power plants, petrochemical and oil & gas industries, it is a legacy spare part used for maintenance and system retrofit of existing AC800M installations. For brand-new projects, ABB recommends CI854BK01 (3BSE069449R1) as the replacement modelABB Group.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 3BSE030220R1 |
| Model | CI854AK01 |
| Brand | ABB |
| Type | PROFIBUS-DP/V1 Communication Interface |
| Compatible Controller | ABB AC800M |
| Protocol | PROFIBUS DP / V1 |
| Max Baud Rate | 12 Mbit/s |
| Package Content | CI854 module + TP854 baseplate |
| Operating Temperature | -5°C ~ +60°C |
| Storage Temperature | -25°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Dimensions | 127.5 × 186 × 59 mm |
| Net Weight | 0.59 kg |
| Certification | CE |
| Compliance Note | Not RoHS2 compliant, only for repair spare use for old systems before 2017 |
Key Features
- PROFIBUS DP/V1 master communication for AC800M controller
- Support high-speed PROFIBUS bus up to 12 Mbit/s for real-time process data exchange
- Built-in module self-diagnosis, front panel LED for module and bus status indication
- Supports redundant configuration for high availability critical control applications
- Hot-swap capable within AC800M rack without controller shutdown
- Easy configuration via ABB Control Builder software
- Seamless connection to wide range of PROFIBUS field instruments and drives
Installation & Testing Notes
- Mount CI854AK01 with TP854 baseplate in designated slot of AC800M rack
- Terminate PROFIBUS cable properly, check bus shielding and termination resistors before power-up
- After installation, download hardware configuration from Control Builder
- Execute bus scan to detect all PROFIBUS slave devices and verify data mapping
- Check LED indicators to confirm module online and no bus error
- For replacement, hot swap is available; confirm controller is in run state and redundancy healthy before removing faulty module
- Perform full communication loop test to validate read/write with all field slaves
FAQ
Q: Which control system is CI854AK01 used for? A: It is designed for ABB AC800M controller.
Q: What communication protocol does it support? A: PROFIBUS DP / V1, works as PROFIBUS master.
Q: Can this module be hot swapped? A: Yes, hot swap supported on AC800M rack.
Q: What is the replacement model for new installation? A: CI854BK01 (3BSE069449R1).
