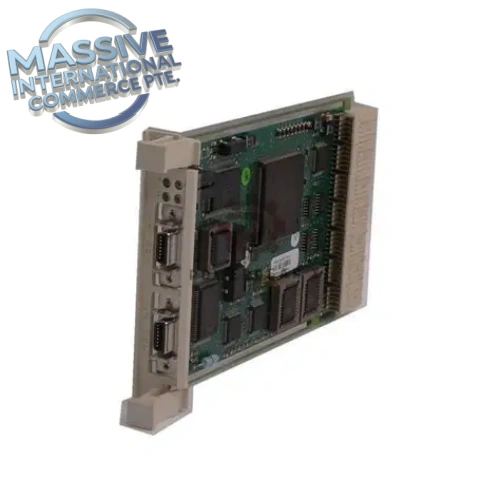

ABB CI522A 3BSE018283R1 | AF100 Redundant Fieldbus Interface Module for S800 I/O In Stock

Description

At-A-Glance Executive Brief

• Model: CI522A, Part Number 3BSE018283R1
• Brand: ABB
• Part Type: AF100 (Advant Fieldbus 100) redundant fieldbus interface module
• Lifecycle status: Legacy mature product; stocked for brownfield ABB 800xA / AC800M DCS retrofits
• System compatibility: ABB AC800M, System 800xA, S800 remote I/O, AF100 fieldbus
• Weight: 0.20 kg

Technical Introduction

Failure of CI522A breaks AF100 bus communication between AC800M controller and S800 remote I/O racks, resulting in total loss of field I/O data, loss of control outputs, and potential process shutdown or unit trip. The ABB CI522A (3BSE018283R1) is a dedicated AF100 fieldbus interface module for ABB AC800M controllers in System 800xA DCS. It establishes redundant Advant Fieldbus 100 links to connect the controller with distributed S800 remote I/O clusters. Dual AF100 ports provide hot standby communication redundancy; if one bus path fails, the second channel automatically takes over without interruption to I/O exchange. It transfers analog/digital input values, control outputs, diagnostics and alarm signals between the DCS controller and S800 I/O modules over AF100. It supports Control Builder M configuration, and reports bus health, link errors and module status to the DCS HMI. Widely deployed in power plants, pulp & paper, chemical, oil & gas and water treatment facilities. Operators maintain spare CI522A modules for fast replacement during AF100 bus interface maintenance.

• Best Suited For
  • ABB System 800xA / AC800M controller racks
  • Redundant AF100 fieldbus communication link between main controller and S800 remote I/O stations
  • Direct drop-in replacement for existing ABB CI522A 3BSE018283R1 AF100 interface hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• CI522A supports hot-swap in AC800M rack. Verify the redundant AF100 communication path remains healthy before extracting the faulty module.
• AF100 bus wiring must follow ABB RS485 shielded twisted-pair specifications with proper bus termination resistors at both ends; missing termination causes high communication errors.
• Redundant AF100 cables must be routed in separate cable trays for true path redundancy.
• After replacement, download hardware configuration via Control Builder M, validate AF100 link health and full S800 I/O data exchange, check error counters.
• ESD protection required during PCB handling.

Adaptive QA & Testing Protocol

Each CI522A 3BSE018283R1 module is bench tested on AC800M rack with Control Builder M. We verify backplane communication and module identification. Dual AF100 ports are tested with S800 I/O simulator, validating redundant bus switchover under simulated single cable failure. I/O data read/write and diagnostic/alarm reporting are checked. Front panel status LEDs, watchdog function and error counters are inspected. PCB visual inspection and connector continuity test are performed. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is ABB CI522A 3BSE018283R1 used for? A: It is an AF100 redundant fieldbus interface module for ABB AC800M / 800xA DCS. It connects the controller to S800 remote I/O racks over dual redundant Advant Fieldbus 100 links.

Q: What warranty applies for refurbished and NSFP CI522A? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, incorrect Control Builder configuration, AF100 bus wiring/termination faults and field surge transients.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB CI522A modules.

Q: What is the difference between CI522A and CI801? A: CI522A is AF100 bus interface for S800 I/O; CI801 is PROFIBUS DP master module, used for PROFIBUS field devices.
