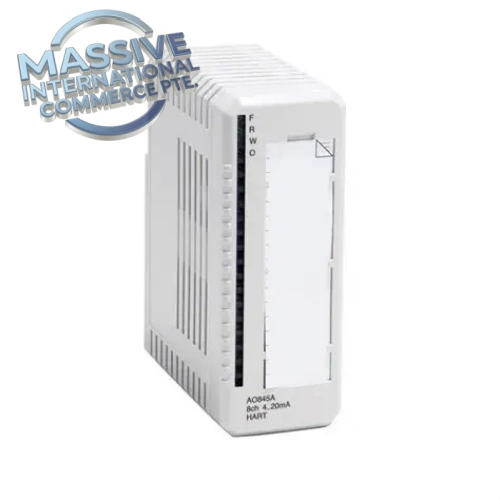

ABB AO845A 3BSE045584R1 | S800 I/O 8-Channel HART Analog Output Module In Stock

Description

At-A-Glance Executive Brief

• Model: AO845A, Part Number 3BSE045584R1
• Brand: ABB
• Part Type: S800 I/O analog output module
• Lifecycle status: Mature active legacy product; stocked for System 800xA / Freelance brownfield DCS
• System compatibility: ABB System 800xA, Freelance, S800 I/O, PROFIBUS DP, TU842/TU843 terminal units
• Weight: 0.21 kg

Technical Introduction

Failure of AO845A will lose 4–20mA control signals to field actuators, control valves and positioners, causing loss of process modulation, valve stuck or unit disturbance. The ABB AO845A is an 8-channel unipolar analog output module for ABB S800 remote I/O, used in System 800xA and Freelance DCS. It outputs 4–20mA control signals for modulating valves, actuators, VFD setpoints and other analog field devices. It supports HART pass-through, allowing DCS to read HART diagnostic and device parameters from HART-enabled positioners and transmitters. The module supports single or redundant module operation, with comprehensive diagnostics including wire-break detection, load monitoring, short-circuit protection and module self-test. It communicates to the DCS controller via PROFIBUS DP. Widely used in power, pulp & paper, chemical, oil & gas and water treatment plants. Plant operators stock AO845A spares for fast replacement during S800 I/O maintenance.

• Best Suited For
  • ABB System 800xA and Freelance DCS S800 I/O racks
  • 4–20mA modulating control valves, HART valve positioners, analog actuator setpoint control
  • Direct drop-in replacement for existing ABB AO845A 3BSE045584R1 analog output hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• AO845A supports hot-swap within S800 rack. For redundant paired configuration, confirm standby path healthy before pulling the faulty module.
• Requires matching terminal unit (TU842/TU843) for redundant setup.
• HART pass-through must be enabled in Control Builder; without proper configuration HART device diagnostics will not upload to DCS.
• 4–20mA loop wiring must check loop resistance, excessive load over 750Ω causes output saturation or wire-break alarms.
• ESD protection required during module handling.
• After replacement, download DCS hardware configuration, verify channel scaling, valve response and wire-break diagnostic function before returning to automatic control.

Adaptive QA & Testing Protocol

Each AO845A 3BSE045584R1 module is bench tested on S800 I/O rack with Control Builder. We verify backplane and PROFIBUS DP communication. All 8 channels are tested across full 4–20mA range with precision ammeter. Wire-break and short-circuit diagnostic alarms are simulated and validated. HART pass-through communication is verified with HART field device simulator. Front panel status LEDs and module self-test diagnostics are checked. PCB visual inspection and connector continuity test are performed. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is ABB AO845A used for? A: It is an 8-channel 4-20mA analog output S800 I/O module for ABB 800xA/Freelance DCS, used to send modulating control signals to valves and actuators with HART pass-through support.

Q: What warranty applies for refurbished and NSFP AO845A? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, loop overload, incorrect Control Builder configuration and field wiring faults.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB AO845A modules.

Q: What is the difference between AO845A and AO820? A: AO845A is 8ch 4-20mA only with HART and redundancy support; AO820 is 4ch, supports both bipolar voltage and current signals, no HART.
