Description

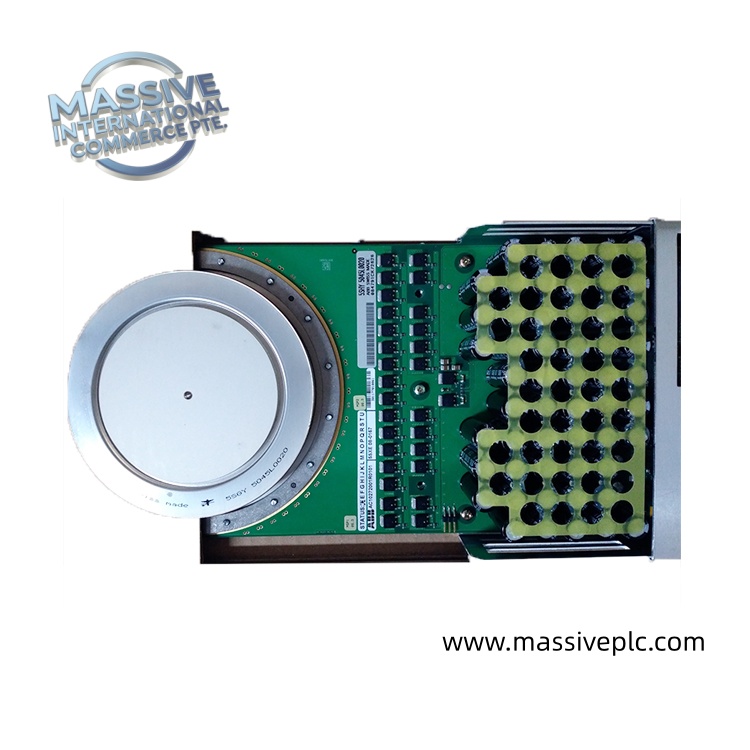

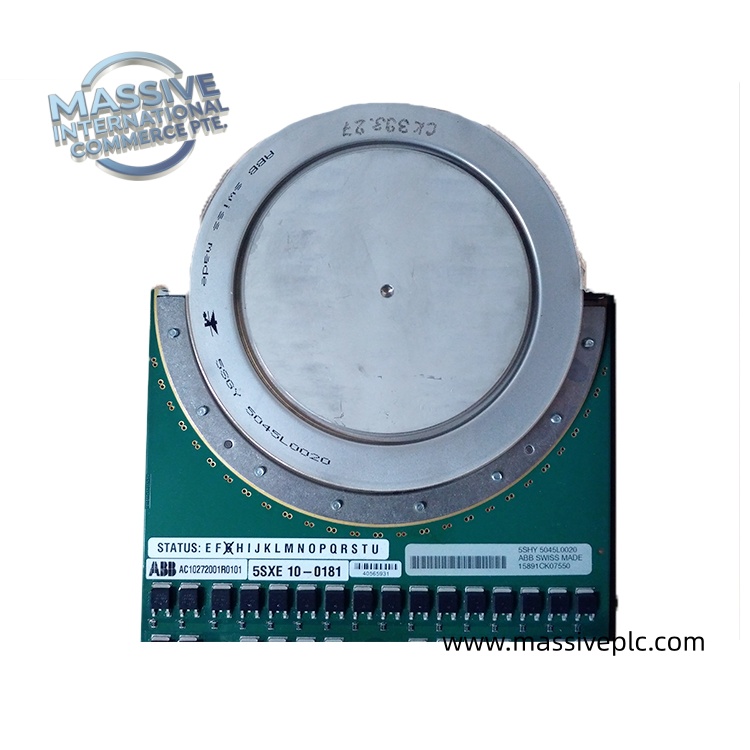

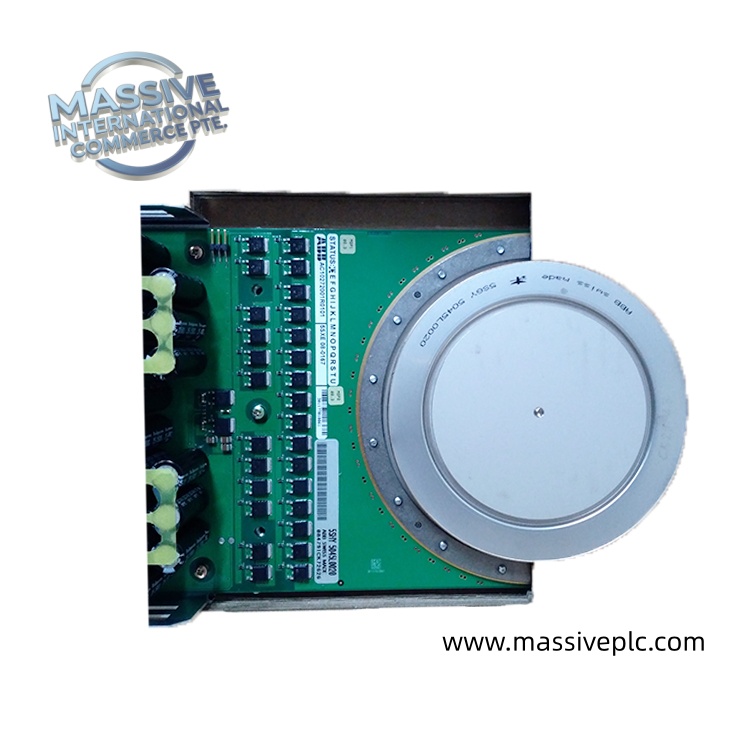

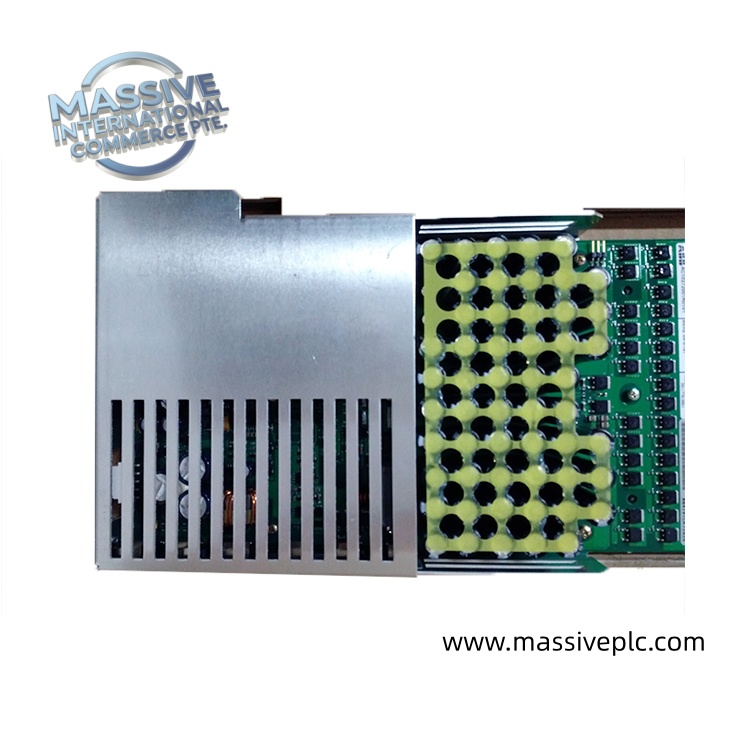

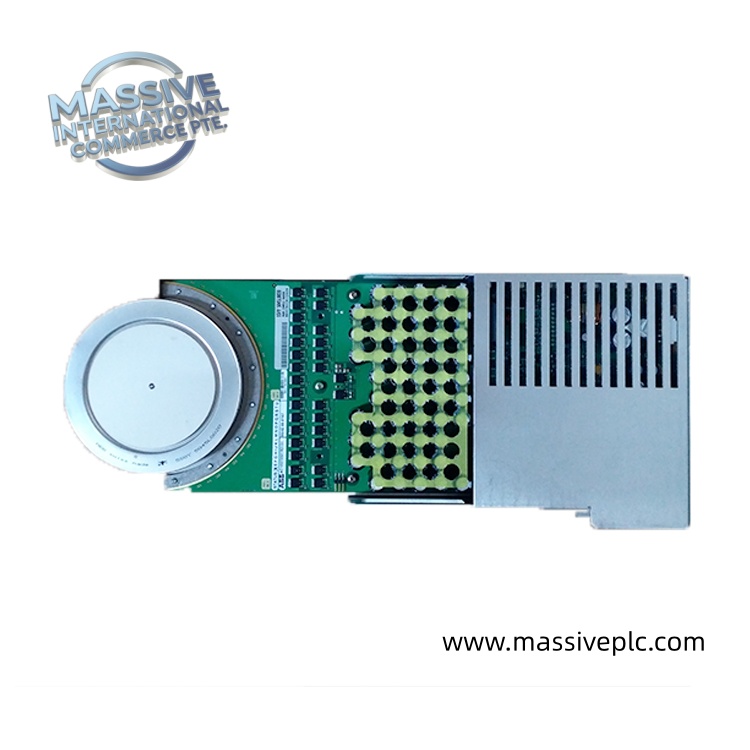

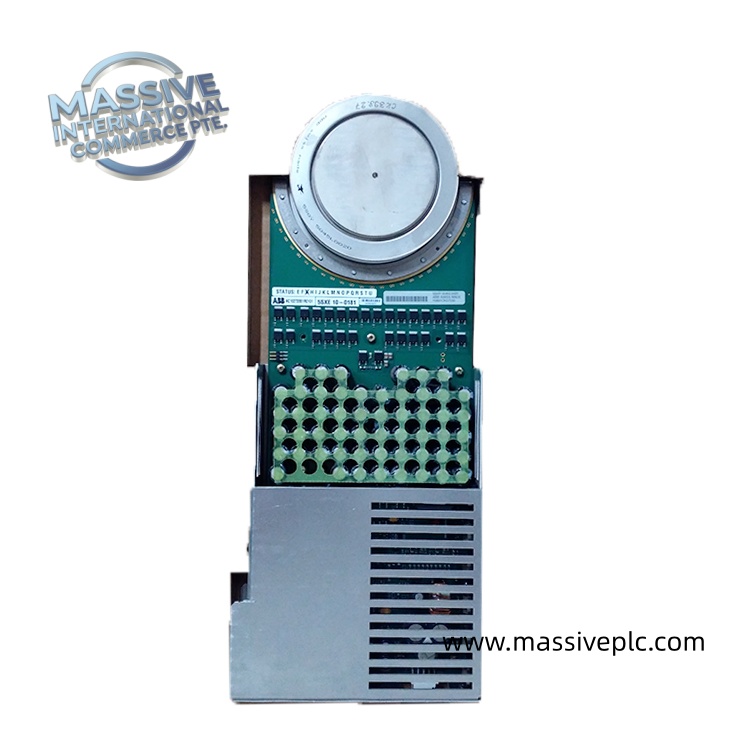

ABB 5SHY5045L0020 AC10272001R0101 5SXE08-0167 | IGCT Power Semiconductor Module, High-Power Industrial Drive Spare Part, In Stock
Model: 5SHY5045L0020-AC10272001R0101-5SXE08-0167–2
Brand: ABB
Product Type: Integrated Gate-Commutated Thyristor (IGCT) Module
Gate Driver Reference: 5SXE08-0167
ABB Part Number: AC10272001R0101
Rated Voltage: 4500 V
Rated Current: 4000 A
Application: Medium-voltage drives, high-power converters, industrial inverters, and power electronics systems
Model: 5SHY5045L0020
Brand: ABB
Weight: ~3.4 kg
Dimension: approx 300×270×100 mm
HS Code: 85413000
Type: IGCT Power Module
Output: High‑power semiconductor switching component
Model: AC10272001R0101
Brand: ABB
Weight: ~1.2 kg
Dimension: approx 270×180×45 mm
HS Code: 85389091
Type: Gate Drive Board
Output: IGCT gate drive signal
Model: 5SXE08‑0167
Brand: ABB
Weight: ~0.38 kg
Dimension: approx 125×85×36 mm
HS Code: 85413000
Type: IGCT Gate Unit
Output: Gate drive pulse signal
Product Overview
The ABB 5SHY5045L0020 is a high-power Integrated Gate-Commutated Thyristor (IGCT) module designed for demanding industrial power-conversion applications. Supplier listings associate this device with part number AC10272001R0101 and gate-driver reference 5SXE08-0167. Technical listings identify the 5SHY5045L0020 device as a 4500 V, 4000 A class semiconductor component.
