Description
At-A-Glance Executive Brief

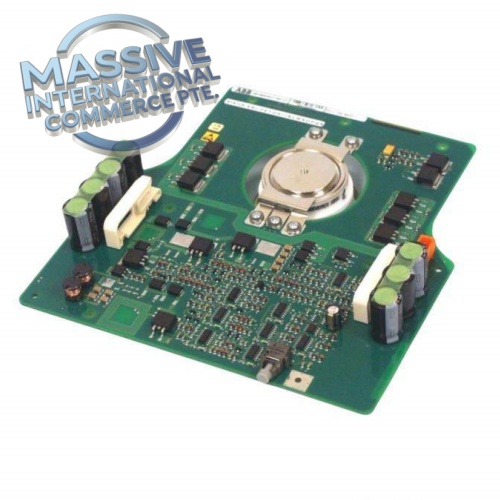

- Model: 5SHX0445D0001, alternate part number 3BHL000382P0101
- Brand: ABB
- Part Type: HiPak Press-pack IGCT (Integrated Gate-Commutated Thyristor) power semiconductor module
- Lifecycle status: Legacy high-power semiconductor; stocked for brownfield ABB ACS6000 medium voltage drive retrofits
- System compatibility: ABB ACS6000 medium voltage converters, works with GVC700AE01 gate driver board (3BHB004027R0101), communicates drive health to plant DCS/SCADA
- Weight: ~2.7 kg
Technical Introduction
Failure of 5SHX0445D0001 will cause phase arm short or open circuit inside the medium voltage converter. The drive triggers severe overcurrent protection, trips the high-power motor load, and sends critical fault alarms to the DCS. A damaged IGCT can also destroy the matching gate driver and adjacent power stack components. The ABB 5SHX0445D0001 is a HiPak series press-pack IGCT power module built for megawatt-class medium voltage converters. It integrates the IGCT die and anti-parallel freewheeling diode inside a pressure contact package. This device performs high-speed DC/AC power inversion for large synchronous and asynchronous motors. Fiber-optic gate signals from the GVC700AE01 driver control turn-on and turn-off. The press-pack design delivers superior thermal performance and short-circuit failure mode, critical for high-reliability power systems. Temperature, gate feedback and fault status are monitored by the drive control system and reported to DCS asset monitoring. Widely used in mining mills, metallurgical rolling drives, power plant fans/pumps and marine propulsion. Plant maintenance teams stock 5SHX0445D0001 to reduce forced downtime for ACS6000 power stack repairs.
- Best Suited For
- ABB ACS6000 medium voltage variable frequency drive power phase units
- High power DC-to-AC conversion, large motor speed regulation and power conversion stacks
- Direct drop-in replacement for existing ABB 5SHX0445D0001 HiPak IGCT power hardware
Core Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 5SHX0445D0001 / 3BHL000382P0101 |
| Device Type | Press-pack HiPak IGCT with integrated freewheeling diode |
| Rated Blocking Voltage | 4500 V |
| Continuous On-State Current | 445 A |
| Gate Interface | Fiber optic trigger (requires matched GVC700AE01 gate driver) |
| Package | Press-pack (pressure contact) |
| Operating Junction Temp | -40℃ ~ +125℃ |
| Mounting | Stacked assembly inside ACS6000 phase module, water-cooled base |
| Weight | ~2.7 kg |
| Environmental Details | Please refer to the OEM datasheet for complete environmental tolerances. |
Field Engineer’s Tech Notes
- Verify part number, revision and gate driver compatibility before replacement. This IGCT must pair with GVC700AE01 (3BHB004027R0101).
- High voltage power device. Lockout-tagout, DC bus discharge and zero-energy verification are mandatory before power stack disassembly.
- Press-pack clamping torque must strictly follow ABB specifications; uneven pressure causes thermal runaway and premature device failure.
- Check deionized water cooling path and sealing gaskets in water-cooled phase assemblies for leaks.
- After replacement, perform insulation resistance test, gate fiber communication test, no-load power-up, and full load validation before returning the drive to service.
- ESD protection required while handling IGCT and gate driver PCBs.
Adaptive QA & Testing Protocol
Each 5SHX0445D0001 IGCT is bench tested with ABB ACS6000 power test fixture. We perform forward/reverse blocking voltage testing, gate trigger function with matched GVC700AE01 driver, and freewheeling diode characterization. Thermal resistance and leakage current are measured. Fiber optic gate interface responsiveness is validated. Press-pack contact surfaces are visually inspected for scratches and oxidation. Full test reports or bench test video clips are available upon request.
Buyer’s FAQ
Q: What is ABB 5SHX0445D0001 used for? A: It is a 4.5kV 445A press-pack HiPak IGCT power semiconductor for ABB ACS6000 medium voltage drives, performing DC/AC inversion for large industrial motors.
Q: What warranty applies for refurbished and NSFP 5SHX0445D0001? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, incorrect clamping torque, water leakage, overvoltage surge, and mismatched gate driver installation.
Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB 5SHX0445D0001 IGCT modules.
Q: Can the IGCT work alone without the GVC700AE01 gate driver? A: No. The IGCT relies on the dedicated fiber-optic gate driver board to provide turn-on/turn-off pulses. It cannot operate standalone.
