Description
Product Overview

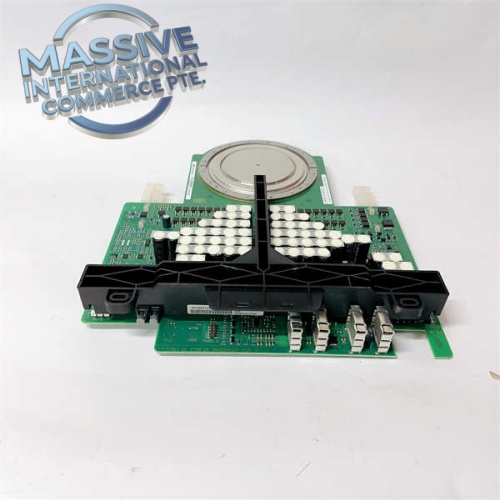

The 3BHE014557R0104 is an ABB main control printed circuit board assembly used for UNITROL excitation systems and high-power converter control platforms. It executes core control algorithms, manages feedback signal sampling, pulse generation, backplane bus communication and system diagnostics for synchronous generator excitation control. Widely deployed in thermal power, hydro power and heavy industrial power conversion equipment as a critical spare for excitation cabinet replacement.
Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | ABB |
| Part Number | 3BHE014557R0104 |
| Product Type | Main Control Board / Excitation Controller PCB |
| Applicable System | ABB UNITROL Series Generator Excitation System |
| Mounting | Subrack plug-in card |
| Power Supply | Supplied via rack backplane |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Humidity | 5%–95% non-condensing |
| Application | Power plant generator excitation, high power thyristor converter control |
Key Features
- Core control hardware for excitation regulation, performing voltage loop, current loop and limit function calculations.
- High-speed sampling of generator voltage and current feedback signals, real-time adjustment of thyristor firing angles.
- Integrated on-board diagnostics, fault detection and LED status indication for fast troubleshooting of excitation faults.
- Robust PCB design with EMC protection, suitable for high electromagnetic interference environments in power station control cabinets.
- Supports redundant system configuration for high availability critical generator sets.
- Communicates with other rack modules via internal backplane bus to exchange alarm, status and measurement data.
Installation & Testing Notes
- Strict ESD protection is mandatory during handling and replacement; static discharge can damage sensitive semiconductor chips.
- Verify rack power is stable and check backplane bus integrity before inserting the control board.
- After installation, check front panel LED indicators, download excitation parameters and perform static commissioning.
- Execute closed-loop regulation test and pulse output verification to validate automatic voltage control response.
- Before using as spare, inspect edge connector, solder joints and PCB surface for corrosion, burn marks or bent pins.
FAQ
Q: What system does 3BHE014557R0104 belong to? A: It is the main control board for ABB UNITROL generator excitation systems, used to control the excitation power unit of synchronous generators.
Q: Can this board be hot swapped? A: Hot swap is only allowed in fully redundant excitation configurations. Single channel systems must shut down excitation power before replacement.
Q: What is its main function? A: It runs the automatic voltage regulator (AVR) logic, processes measurement signals and outputs firing commands to thyristor power modules.
