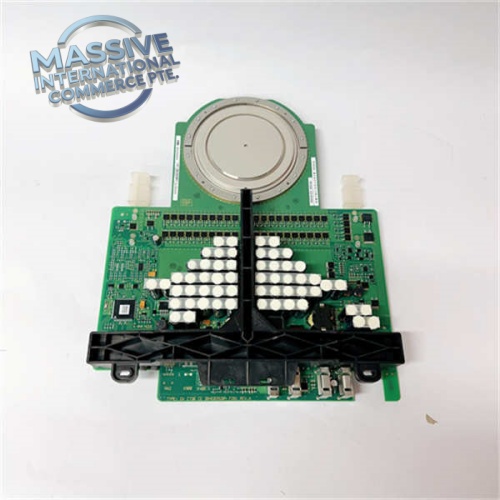

The ABB 3BHB045647R0001, also marked GVC736CE101, is a high-performance gate control board designed for ABB medium voltage variable speed drives and thyristor power conversion systems. It delivers precision firing pulse generation, monitoring and protection for high-power thyristor stacks, serving as the core pulse amplifier and diagnostic interface inside power converter cabinets. It is widely deployed in large motor drive and static excitation applications within power plants and heavy industrial sites.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model Part No. | 3BHB045647R0001 (GVC736CE101) |
| Module Type | Thyristor Gate Control / Pulse Amplifier Board |
| Supply Voltage | 24 VDC (±10%) |
| Typical Power Consumption | 20 W |
| Processor | 32-bit RISC with DSP core |
| Onboard Memory | 8 MB Flash, 4 MB RAM |
| Communication Interfaces | PROFIBUS DP, Modbus RTU, CANopen |
| Operating Temperature | -25°C ~ +55°C |
| Storage Temperature | -40°C ~ +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Enclosure Rating | IP20 (board level; installed inside drive cabinet) |
Key Features
- Generates accurate, synchronized gate firing pulses for high-power thyristor assemblies
- Integrated real-time monitoring of thyristor status, voltage and current feedback
- Comprehensive on-board diagnostics for fault detection including misfire, overcurrent and temperature alarms
- DSP-based control algorithm for stable commutation and high dynamic response
- Multiple industrial fieldbus interfaces for drive control and SCADA system integration
- Rugged industrial PCB construction with surge and EMC protection for harsh power room environments
- Supports parameter configuration, fault logging and waveform capture via service tools
Installation & Test Notes
- Isolate all high-voltage power and 24V control supply before removal or installation.
- ESD protection is mandatory; use anti-static wristband and mat while handling the board.
- Align connectors properly and secure mounting screws, avoid over-torque to prevent PCB damage.
- Complete fieldbus wiring according to system topology, terminate bus ends as required.
- Restore control power, download drive firmware and parameters, then run self-diagnostics.
- Perform low-voltage firing test first to verify pulse output before applying main high voltage.
- After commissioning, check fault history and validate alarm trip functions.
Application
Used in medium voltage variable frequency drives, static excitation systems for synchronous generators, large DC motor drives and industrial power rectifiers. Typical end markets include thermal & hydro power plants, mining, metal rolling mills and oil & gas compression systems.
FAQ
Q: What is the alias model for 3BHB045647R0001? A: The board’s printed model designation is GVC736CE101; 3BHB045647R0001 is the ABB order part number.
Q: Can this board be hot-swapped while the high power converter is energized? A: No. The converter must be shut down and locked out before board replacement, even though 24V control supply may be isolated separately.
Q: What communication protocols does it support? A: PROFIBUS DP, Modbus RTU and CANopen for drive control, status feedback and diagnostic data exchange.
