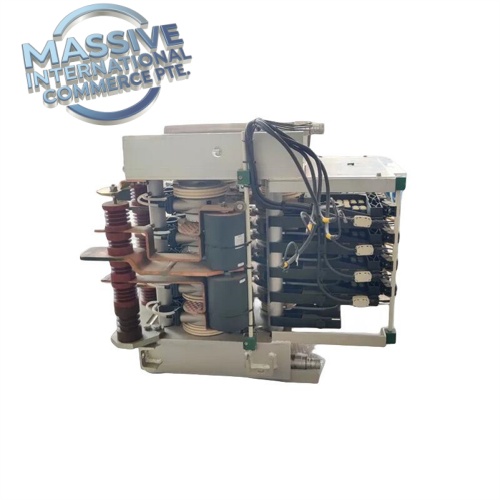

ABB 3BHB030479R0512 S-123H | IGCT Rectifier / Inverter Phase Unit Replacement Spare

Description

At-A-Glance Executive Brief

• Model: S-123H, part number 3BHB030479R0512 (G2.05 revision)
• Brand: ABB
• Part Type: Medium voltage IGCT power phase module (ACS6000 series)
• Lifecycle status: OEM legacy obsolete power stack module; stocked for brownfield ACS6000 medium voltage drive retrofits
• System compatibility: ABB ACS6000 medium voltage variable speed drive, works with AC800PEC controller, drive control cubicle, water cooling system
• Weight: ~178 kg

Technical Introduction

Failure of the S-123H phase module disables one complete power phase of the ACS6000 medium voltage drive, triggering drive trip, loss of high-power motor speed control and production downtime. The ABB S-123H (3BHB030479R0512) is a water-cooled IGCT-based power phase module for ABB ACS6000 medium voltage drives. It integrates IGCT power semiconductors, freewheeling diodes, snubber circuits, current/voltage sensing and water cooling channels. Each S-123H handles one power phase, three phase modules compose a complete 3-phase inverter or rectifier stack. It converts high-voltage DC bus into variable-frequency AC output to control large synchronous/asynchronous motors. It feeds phase current, voltage, temperature and fault diagnostic data back to the AC800PEC drive controller and plant DCS/SCADA. Integrated protection includes overcurrent, overvoltage, overtemperature and short-circuit detection. It is widely deployed in mining, cement, metals, power generation, oil & gas and large water pumping stations. Plant operators keep spare S-123H phase modules to reduce forced outage risk during legacy ACS6000 maintenance and migration.

• Best Suited For
  • ABB ACS6000 medium voltage variable frequency drive power stacks
  • High-power motor speed regulation for compressors, fans, mills and large pumps
  • Direct drop-in replacement for existing ABB S-123H 3BHB030479R0512 IGCT phase power hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Confirm revision match (G2.05) before replacement; mismatched S-123H revisions cause fiber gate signal incompatibility and drive faults.
• This is high-voltage power hardware. Full lockout/tagout, DC bus discharge, water system isolation and zero-energy verification are mandatory before removal.
• Check deionized water piping, seals and leak paths during swap; water leakage will destroy IGCT semiconductors.
• Fiber optic gate links must be inspected for scratches, dust and bend limits; poor fiber quality causes IGCT misfire and catastrophic phase failure.
• After replacement, perform hydraulic leak test, power withstand test, phase current balance calibration and full no-load/load commissioning before returning the drive online.
• ESD protection required for gate driver PCB subassemblies.

Adaptive QA & Testing Protocol

Each S-123H 3BHB030479R0512 phase module is bench tested on ACS6000 power test fixture. We perform hydraulic pressure leak testing of the water cooling circuit. IGCT gate fiber optic triggering function is validated. Snubber circuit continuity, semiconductor integrity and voltage/current sensing channels are calibrated. Thermal sensors and fault alarm signals are simulated and verified to AC800PEC controller. Insulation resistance and high-potential withstand test are executed. Visual inspection of IGCTs, diodes, busbars, water fittings and fiber connectors is performed. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is ABB S-123H 3BHB030479R0512 used for? A: It is a water-cooled IGCT single-phase power module for ABB ACS6000 medium voltage drives. It performs high-power AC/DC or DC/AC power conversion for large industrial motors. Three phase modules form a complete 3-phase converter stack.

Q: What warranty applies for refurbished and NSFP S-123H? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes water leakage damage, high voltage surge transients, fiber damage, improper insulation test and installation errors.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB ACS6000 S-123H phase modules.

Q: Is S-123H hot-swappable? A: NOT hot-swappable. The entire medium voltage drive must be fully isolated, DC bus capacitors discharged and cooling water isolated before phase module replacement.
