Description

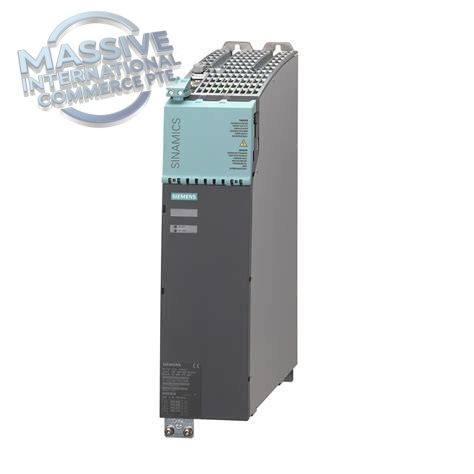

6SL3130-7TE31-2AA3 is a Booksize Active Line Module for Siemens SINAMICS S120 drive system. It converts three-phase AC input into regulated DC link voltage and supports regenerative power feedback back to the grid. This 120kW infeed unit works together with S120 power modules to build multi-axis servo drive systems for machine tools, printing presses and high dynamic automation equipment. Drive-CLiQ interface enables fast digital communication between infeed and power modules.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 6SL3130-7TE31-2AA3 |
| Manufacturer | Siemens |
| Series | SINAMICS S120 Booksize |
| Rated Input | 3AC 380–480 V, 47–63 Hz |
| Rated Infeed Power | 120 kW |
| Rated DC Link Voltage | 600 V DC (380–400V AC input) |
| Rated DC Link Current | 200 A |
| Max DC Link Current | 292 A |
| Cooling | Internal forced air cooling, built-in fan |
| Protection Class | IP20 / UL Open Type |
| Communication | Drive-CLiQ |
| Electronics Supply | 24 V DC (-15% / +20%) |
| Power Factor | Cosφ = 1.0 in Active Mode |
| Dimensions (H×W×D) | 629 mm × 300 mm × 270 mm |
| Net Weight | Approx. 23 kg |
| Certifications | CE, cULus |
| EMC Category | C3, Class A1 with line filter |
Key Features
- Regulated active infeed with full power regeneration capability, feeds braking energy back to AC mains to reduce heat loss
- Unity power factor in active operation, suppresses harmonic distortion of the power grid
- Booksize compact design for cabinet installation, integrated fan for internal air cooling
- High-speed Drive-CLiQ digital link for reliable synchronization between line module and power modules
- Adjustable DC link voltage; supports Active Mode and Smart Mode operation
- Built-in comprehensive protection: overvoltage, undervoltage, overcurrent, over temperature, short-circuit protection
- Parallel-capable for higher total system power when multiple ALM units are matched
Application Scenarios
- CNC machine tools and machining centers
- Printing, paper and converting machinery
- Gantry and multi-axis handling systems
- Plastics injection and extrusion equipment
- High-performance test stands requiring regenerative braking
Installation & Maintenance Notes
- Mount vertically in control cabinet; maintain sufficient clearance for fan air intake and exhaust
- Use recommended Siemens line reactor and EMC line filter to meet harmonic and emission requirements
- Proper protective earth grounding is mandatory; separate power and signal wiring routing
- Verify Drive-CLiQ cable connections before power-up; avoid hot swapping Drive-CLiQ cables under power
- Regularly inspect cooling fan and air filter for dust accumulation; clean filter during scheduled shutdown
- Do not perform high-voltage megger insulation test on power electronics module
- Backup drive parameters via STARTER software for fast replacement and commissioning
FAQ
Q: What is the difference between Active Line Module (ALM) and Smart Line Module (SLM)? A: ALM can regulate DC voltage and return regenerative energy to grid with unity power factor. SLM is unregulated DC link, lower cost and limited regenerative capability.
Q: Can multiple 6SL3130-7TE31-2AA3 modules be paralleled? A: Yes, matched ALM units can be connected in parallel to increase total infeed power for large multi-axis drive systems, following Siemens parallel wiring guidelines.
